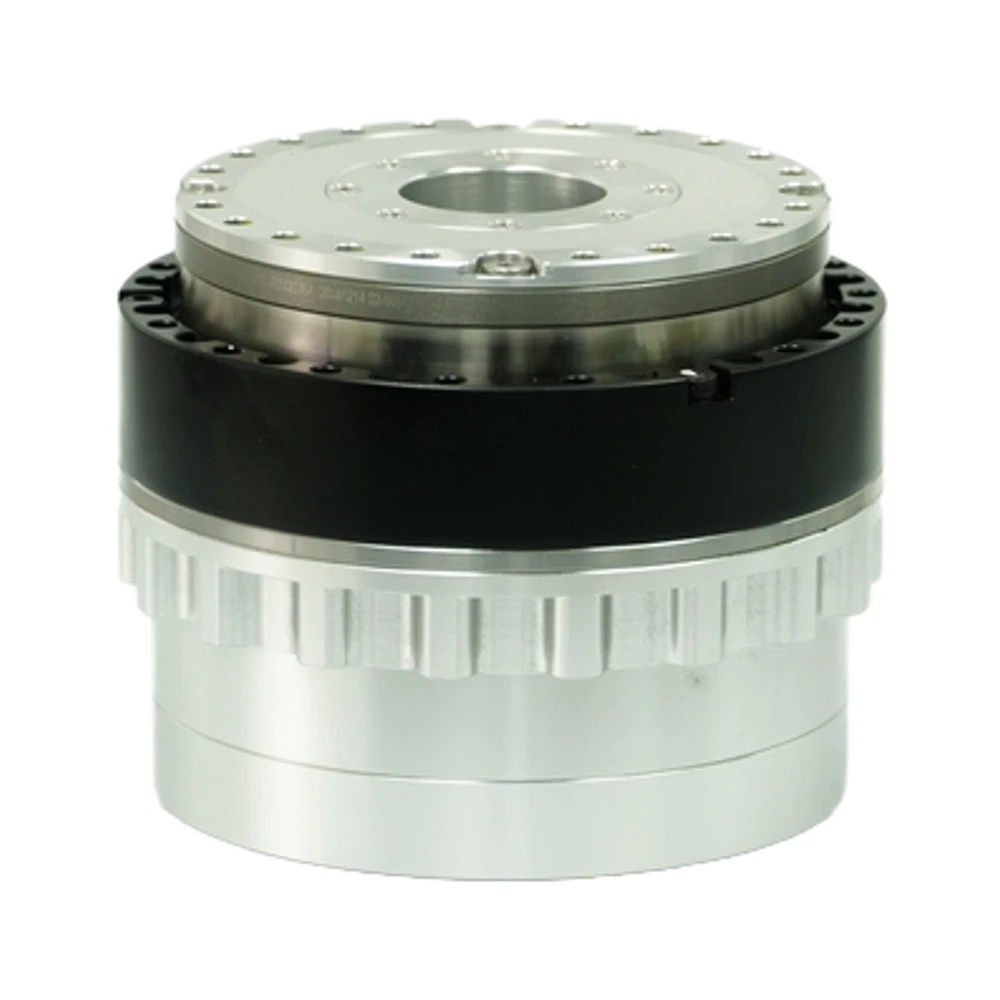

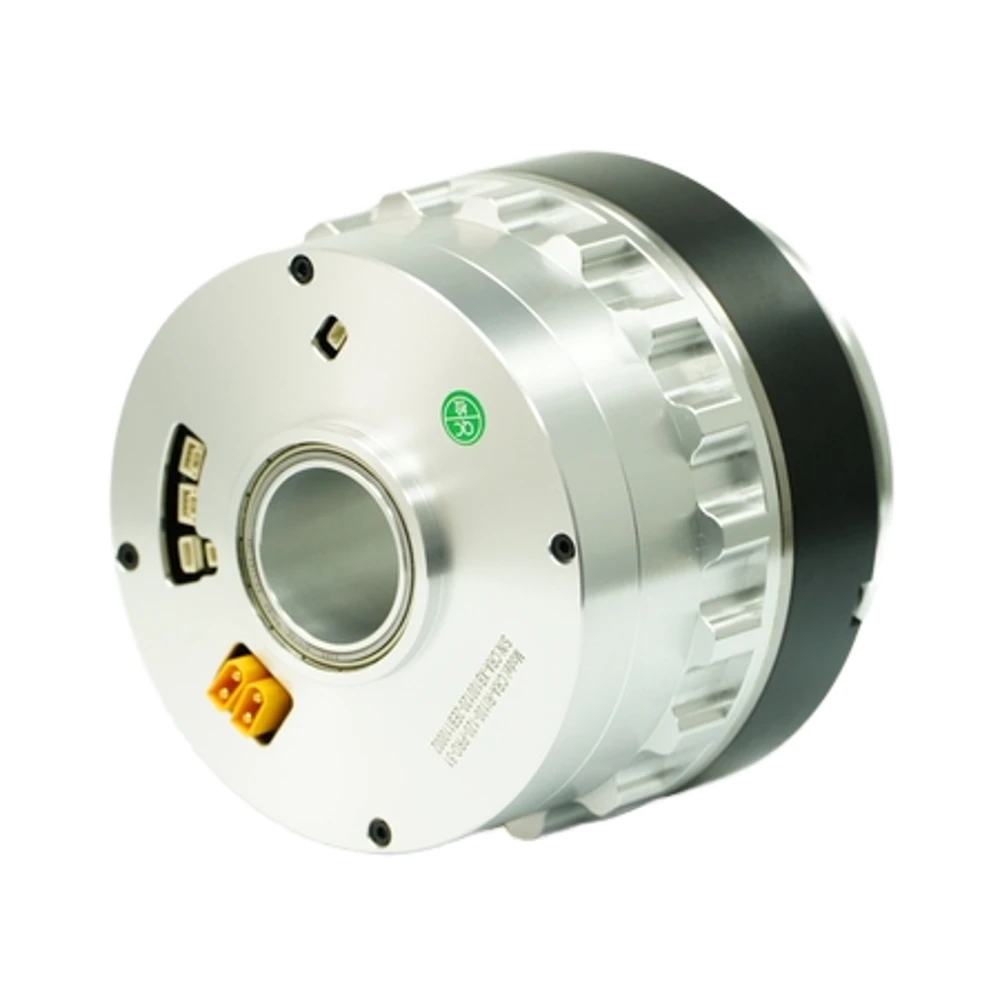

Ti5 Robot Harmonic Drive Servo Motor 500W Flange Mount Brushless Permanent Magnet Totally Enclosed Construction for Robot Arm
Ti5 Robot Harmonic Drive Servo Motor 500W Flange Mount Brushless Permanent Magnet Totally Enclosed Construction for Robot Arm
Technical Specifications
| Commutation | Brushless |
| Rated Power | 500w |
| Speed Rpm | 77RPM |
| Speed(RPM) | 77RPM |
| IP Rating | IP50 |
| Efficiency | IE 2 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | no |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Waterproof |
| Usage | Electric Bicycle, Home Appliance, Smart Home |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 8.4A |
| Model Number | CRA-RI70-90-51 |
| Torque | 69NM |
| Place of Origin | Shanghai, China |
| Brand Name | Ti5 Robot |
| Selling Units | Single item |
| Single package size | 30X30X30 cm |
| Single gross weight | 5 kg |
Tell us about your project and get a customized quote within one business day.
- Custom configurations available
- Global shipping & support
- 1-year warranty included
