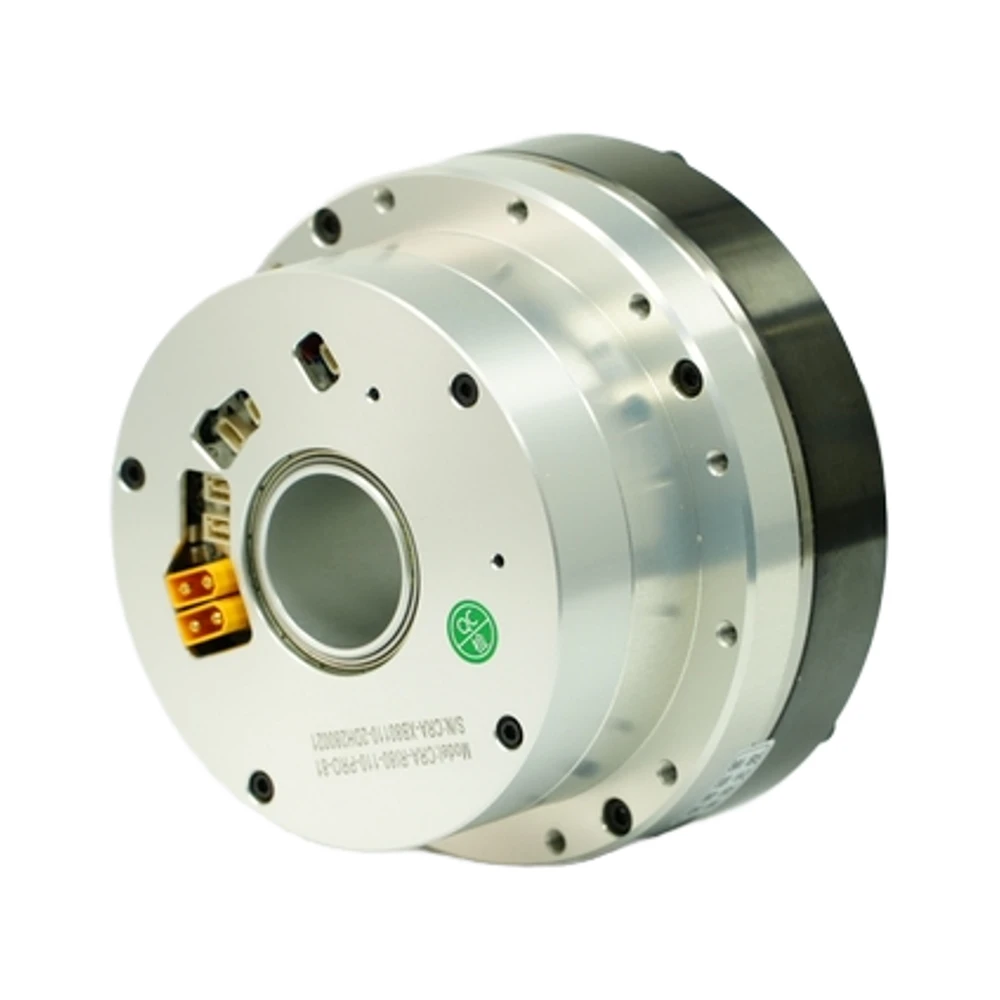

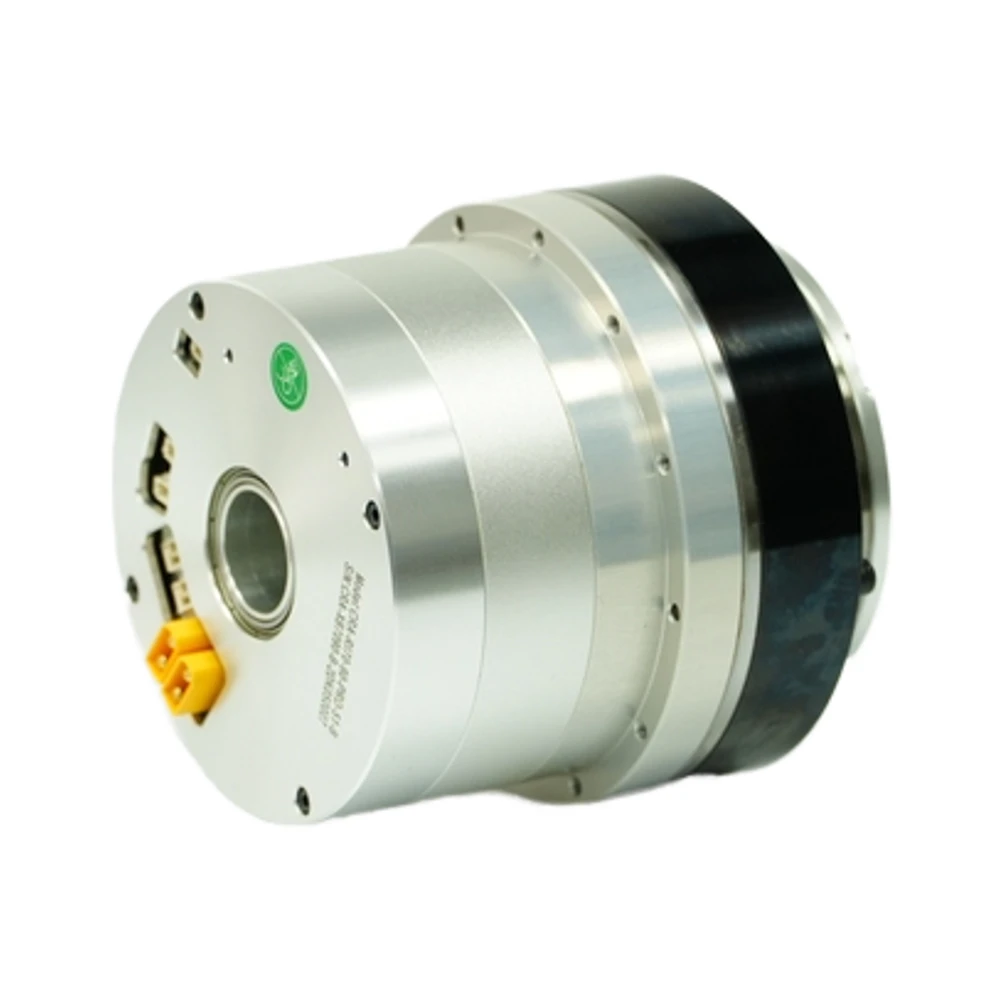

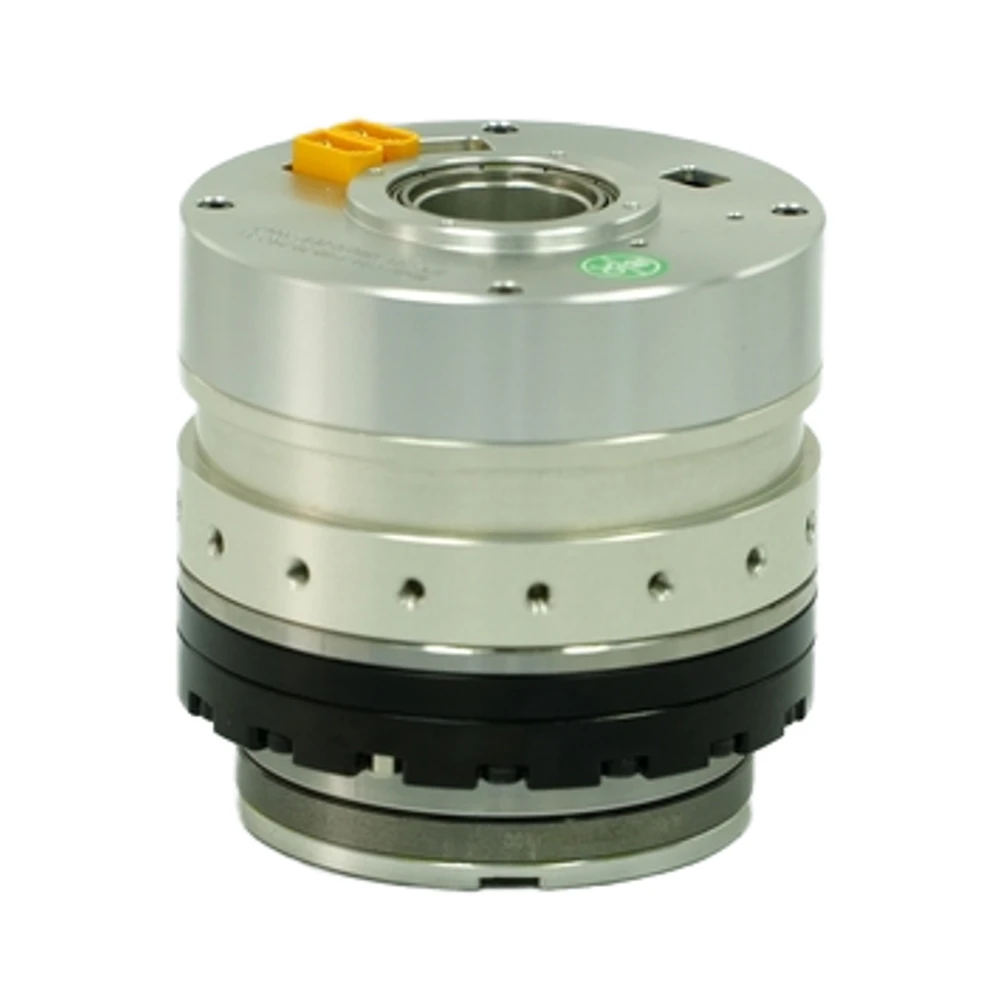

Ti5 CRA-RI110-170-PRO Industrial Automation Robotic Joint Module Permanent Magnet High Torque Servo Motor Hollow Home Appliance
Ti5 CRA-RI110-170-PRO Industrial Automation Robotic Joint Module Permanent Magnet High Torque Servo Motor Hollow Home Appliance

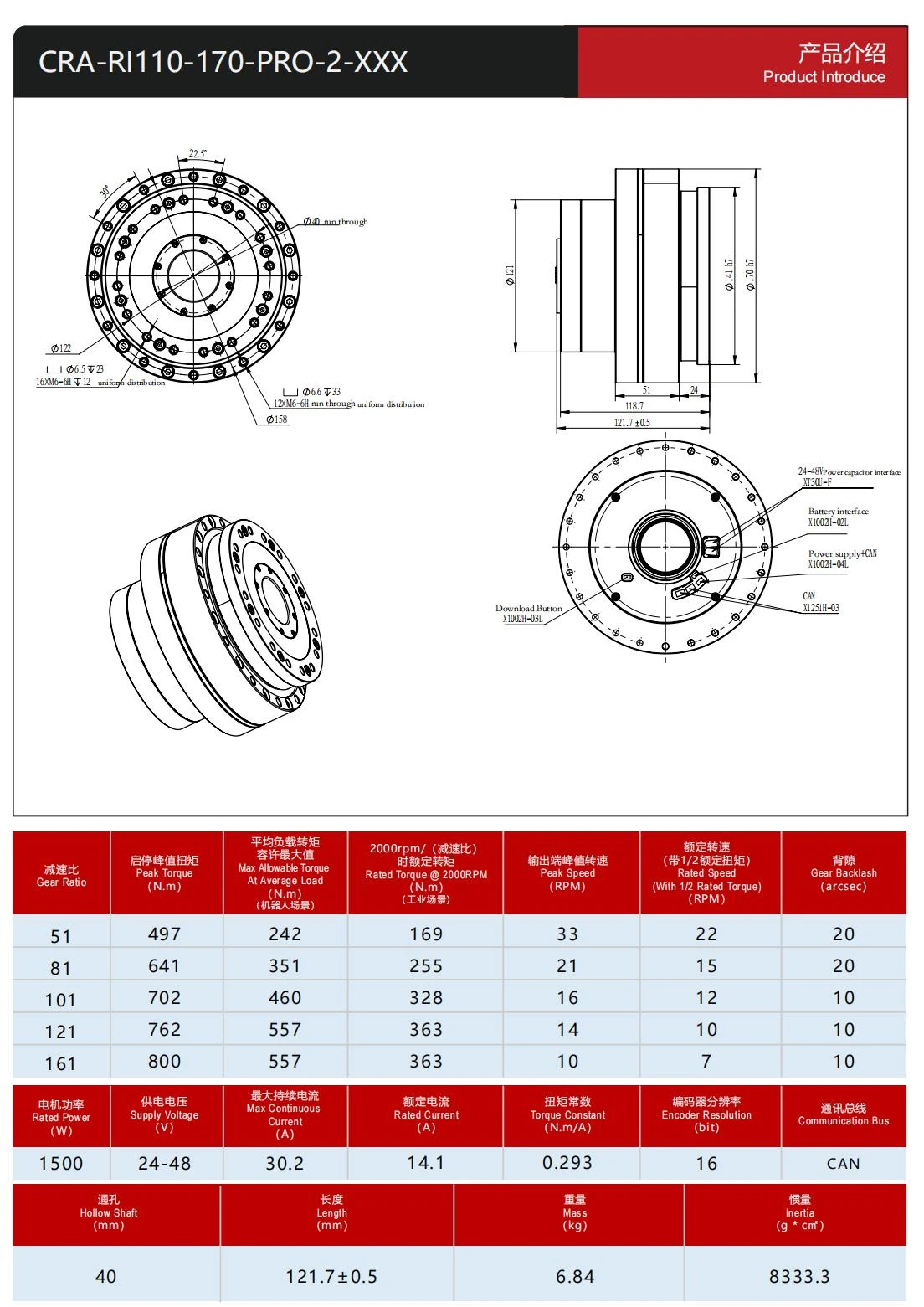

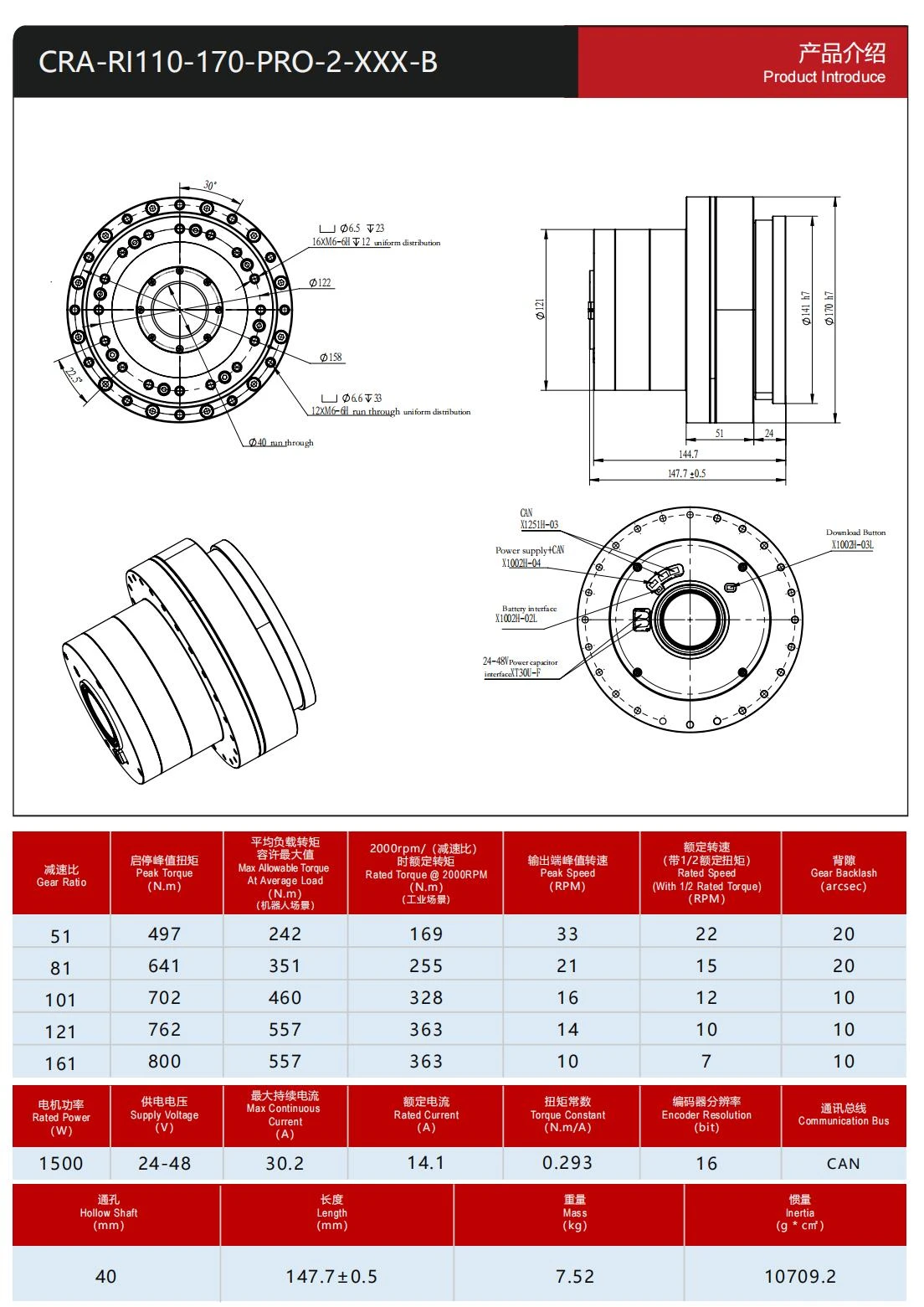

Technical Specifications
| Commutation | Brush |
| Rated Power | 1500W |
| Speed Rpm | 22/15/12/10/7 RPM |
| Speed(RPM) | 22/15/12/10/7 RPM |
| IP Rating | IP65 |
| Efficiency | IE 4 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | Aluminum |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Waterproof |
| Usage | Boat, Electric Bicycle, Home Appliance, Smart Home |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 14.1A |
| Model Number | 110-170 |
| Torque | 497/641/702/762/800NM |
| Place of Origin | Shanghai, China |
| Brand Name | Ti5 Robot |
| Selling Units | Single item |
| Single package size | 30X30X30 cm |
| Single gross weight | 3.0 kg |
Tell us about your project and get a customized quote within one business day.
- Custom configurations available
- Global shipping & support
- 1-year warranty included
