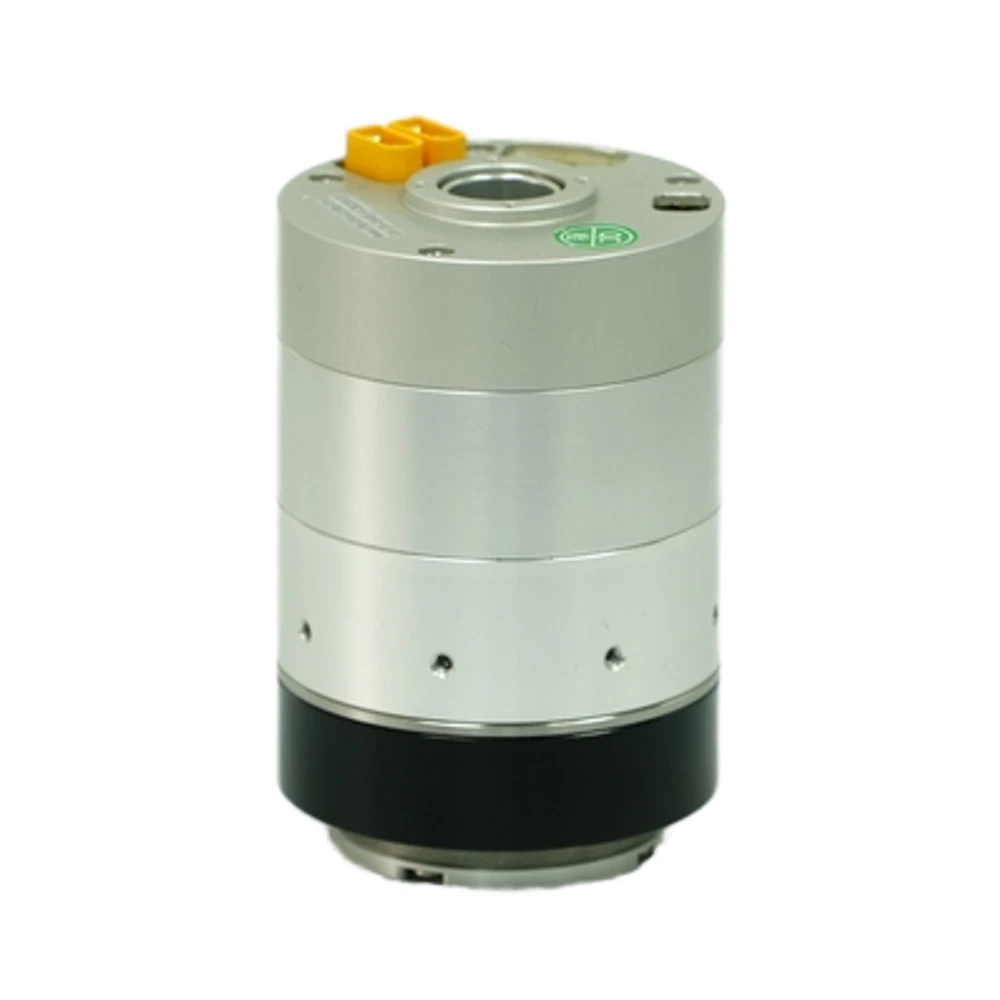

Ti5 Robot 70-90-2E Small Brushless Permanent Magnet Servo Motor for AI Humanoid Robot Arm IP67 Waterproof Home Appliance Use
Ti5 Robot 70-90-2E Small Brushless Permanent Magnet Servo Motor for AI Humanoid Robot Arm IP67 Waterproof Home Appliance Use
Technical Specifications
| Commutation | Brushless |
| Rated Power | 500w |
| Speed Rpm | 61/38/30/25rpm |
| Speed(RPM) | 61/38/30/25rpm |
| IP Rating | IP67 |
| Efficiency | IE 4 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | no |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Waterproof |
| Usage | Electric Bicycle, Home Appliance, Smart Home |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 6.1A |
| Model Number | 70-90-2E |
| Torque | 69/91/102/108NM |
| Place of Origin | Shanghai, China |
| Brand Name | Ti5 Robot |
| Selling Units | Single item |
| Single package size | 30X30X30 cm |
| Single gross weight | 3.0 kg |
Tell us about your project and get a customized quote within one business day.
- Custom configurations available
- Global shipping & support
- 1-year warranty included
