Ti5 Robot CRA-RI110-170RO-2-81 Brushless High Torque Density Robot Joint Actuator 641NM Torque 81:1 Gear Ratio 24-48V Boat Fan
Ti5 Robot CRA-RI110-170RO-2-81 Brushless High Torque Density Robot Joint Actuator 641NM Torque 81:1 Gear Ratio 24-48V Boat Fan
Technical Specifications
| Commutation | Brushless |
| Rated Power | 1500W |
| Speed Rpm | 21 RPM |
| Speed(RPM) | 21 RPM |
| IP Rating | IP50 |
| Efficiency | IE 2 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | no |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Waterproof |
| Usage | Electric Bicycle, Home Appliance, Smart Home |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 30.2A |

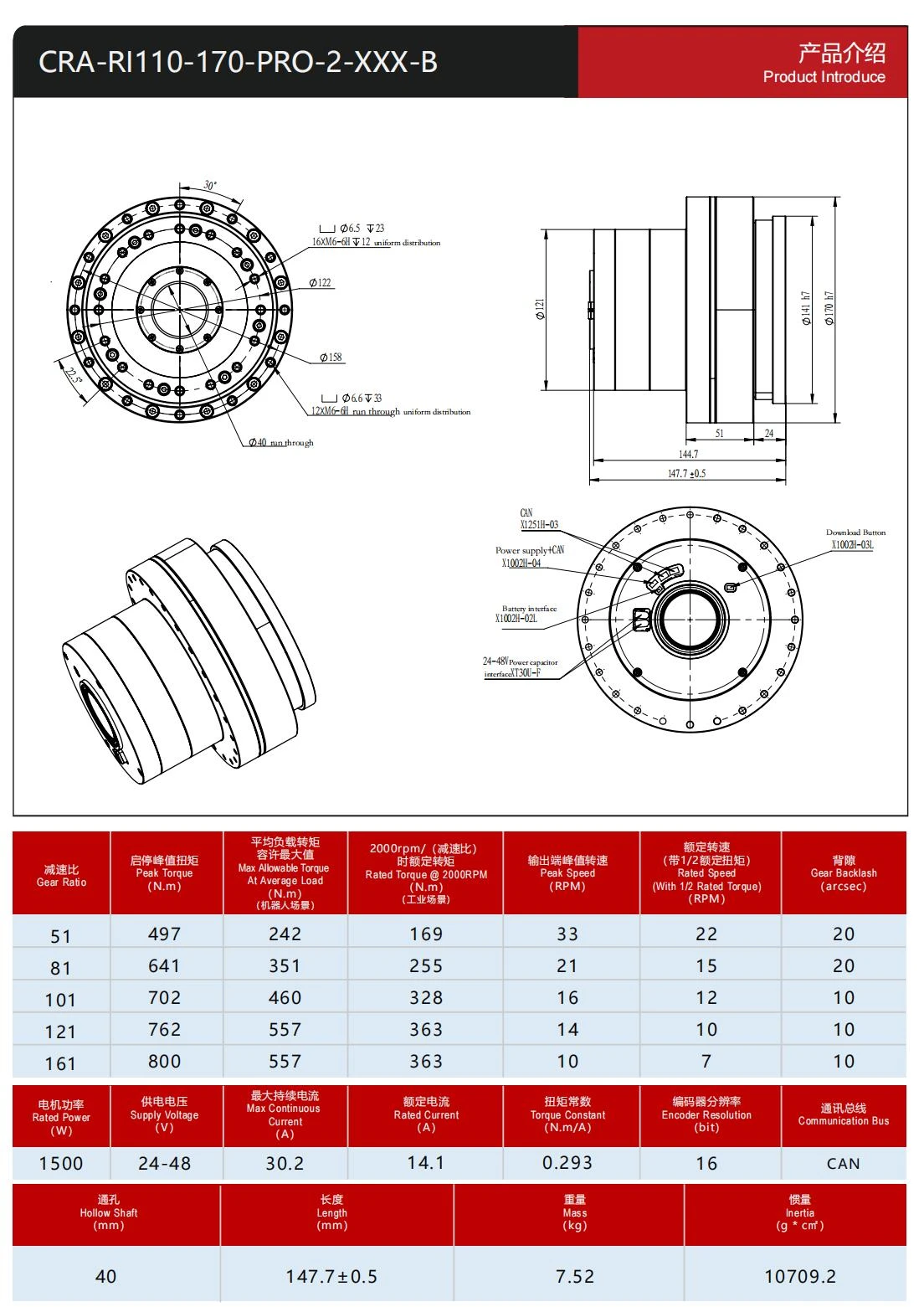

| Model Number | CRA-RI110-170RO-2-81 |
| Torque | 641NM |
| Place of Origin | Shanghai, China |
| Brand Name | Ti5 Robot |
| Selling Units | Single item |
| Single package size | 20X20X20 cm |
| Single gross weight | 2kg |
Tell us about your project and get a customized quote within one business day.
- Custom configurations available
- Global shipping & support
- 1-year warranty included
