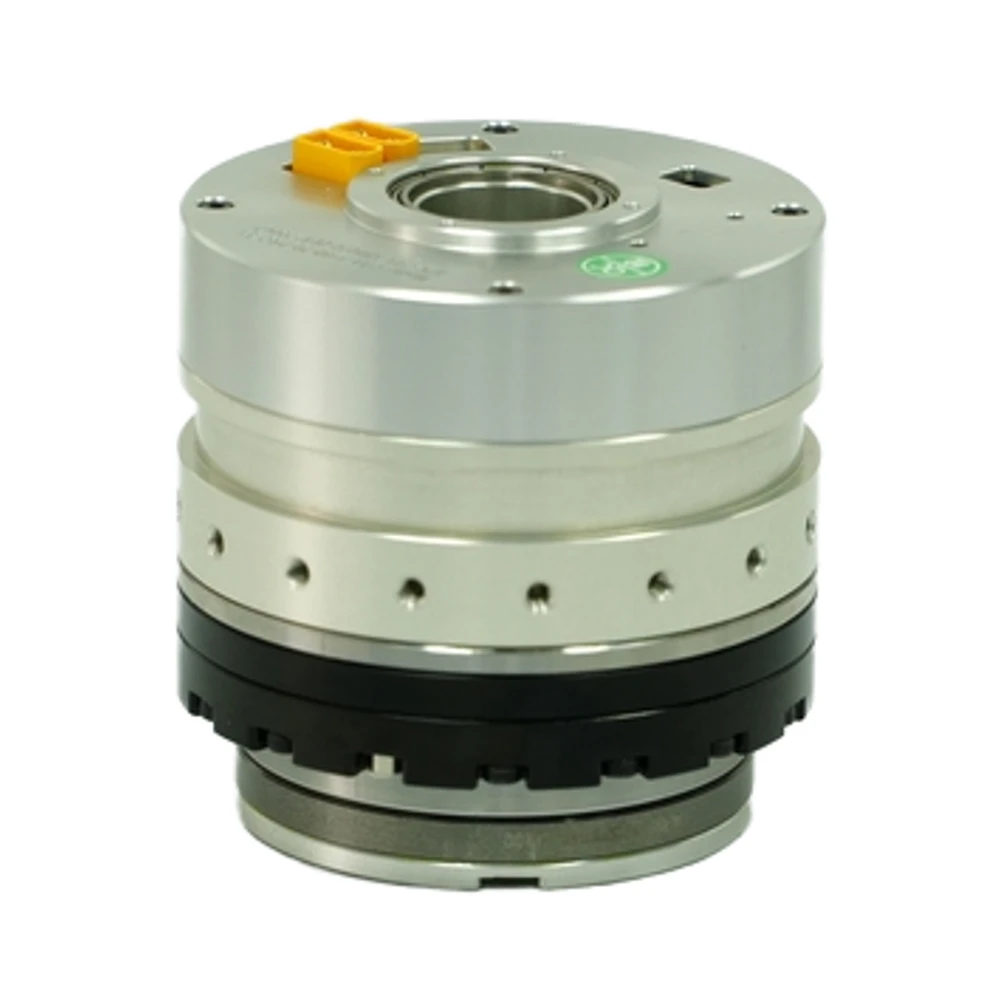

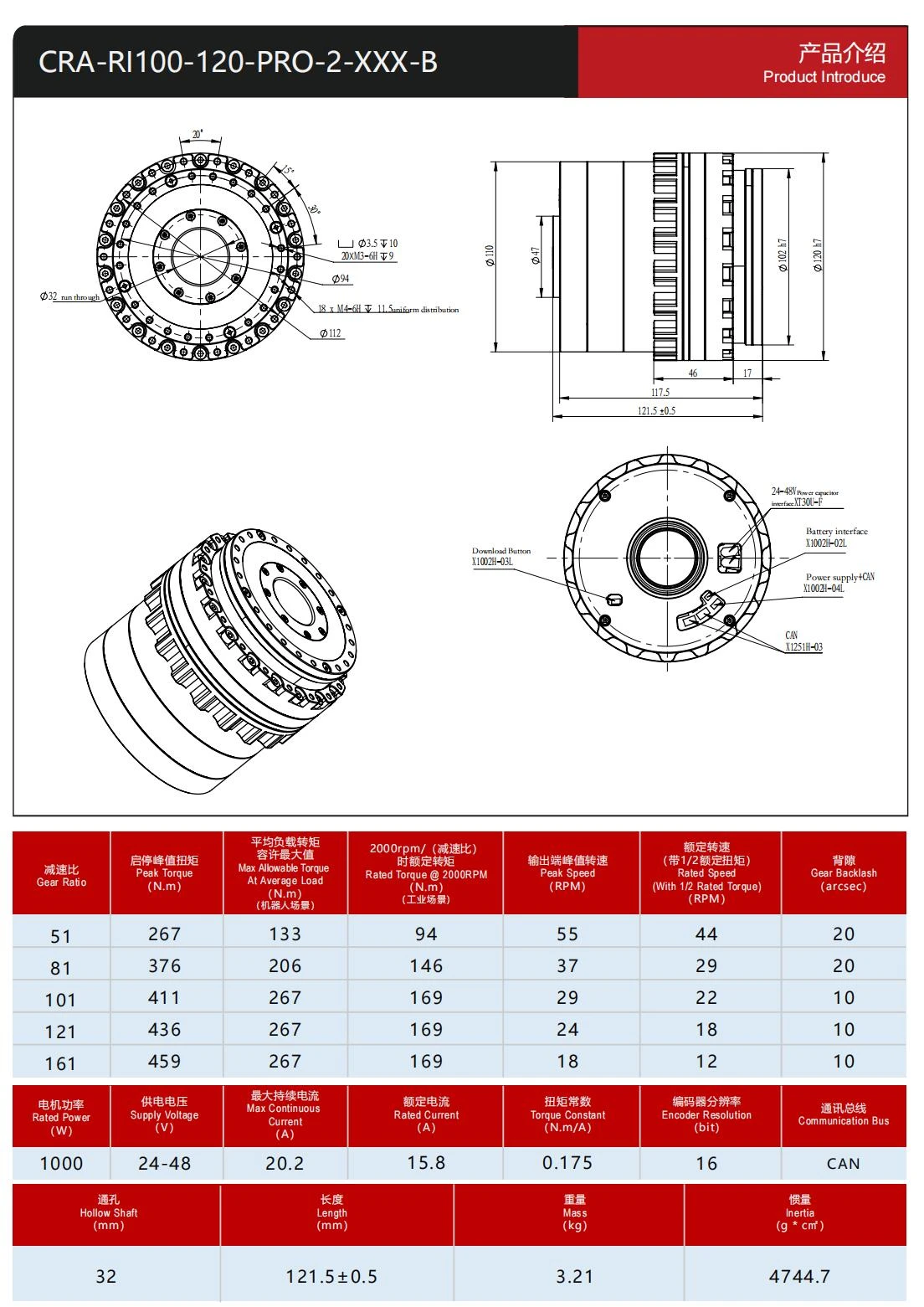

Ti5 Robot CRA-RI100-120-PRO Waterproof IP67 Actuator Brake Single Encoder for Industrial Robots Lightweight Robotic Joint Module
Ti5 Robot CRA-RI100-120-PRO Waterproof IP67 Actuator Brake Single Encoder for Industrial Robots Lightweight Robotic Joint Module

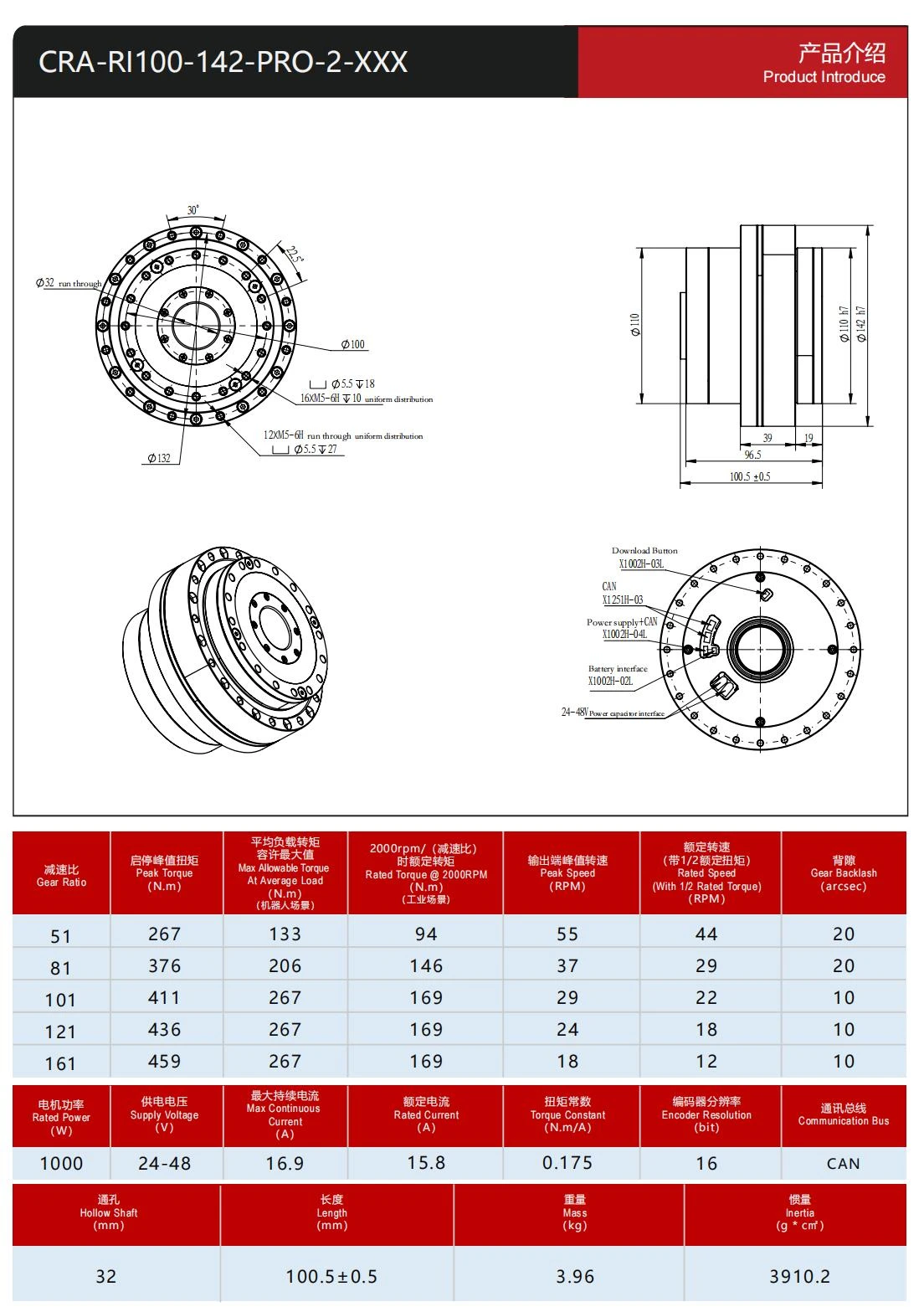

Technical Specifications
| Commutation | Brushless |
| Rated Power | 1000 W |
| Speed Rpm | 44/29/22/18/12rpm |
| Speed(RPM) | 44/29/22/18/12rpm |
| IP Rating | IP67 |
| Efficiency | IE 4 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | no |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Waterproof |
| Usage | Boat, Electric Bicycle, Cosmetic Instrument |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 16.9A |
| Model Number | 100-120 |
| Torque | 267/376/411/436/459NM |
| Place of Origin | Shanghai, China |
| Brand Name | Ti5 Robot |
| Selling Units | Single item |
| Single package size | 30X30X30 cm |
| Single gross weight | 3 kg |
Tell us about your project and get a customized quote within one business day.
- Custom configurations available
- Global shipping & support
- 1-year warranty included
