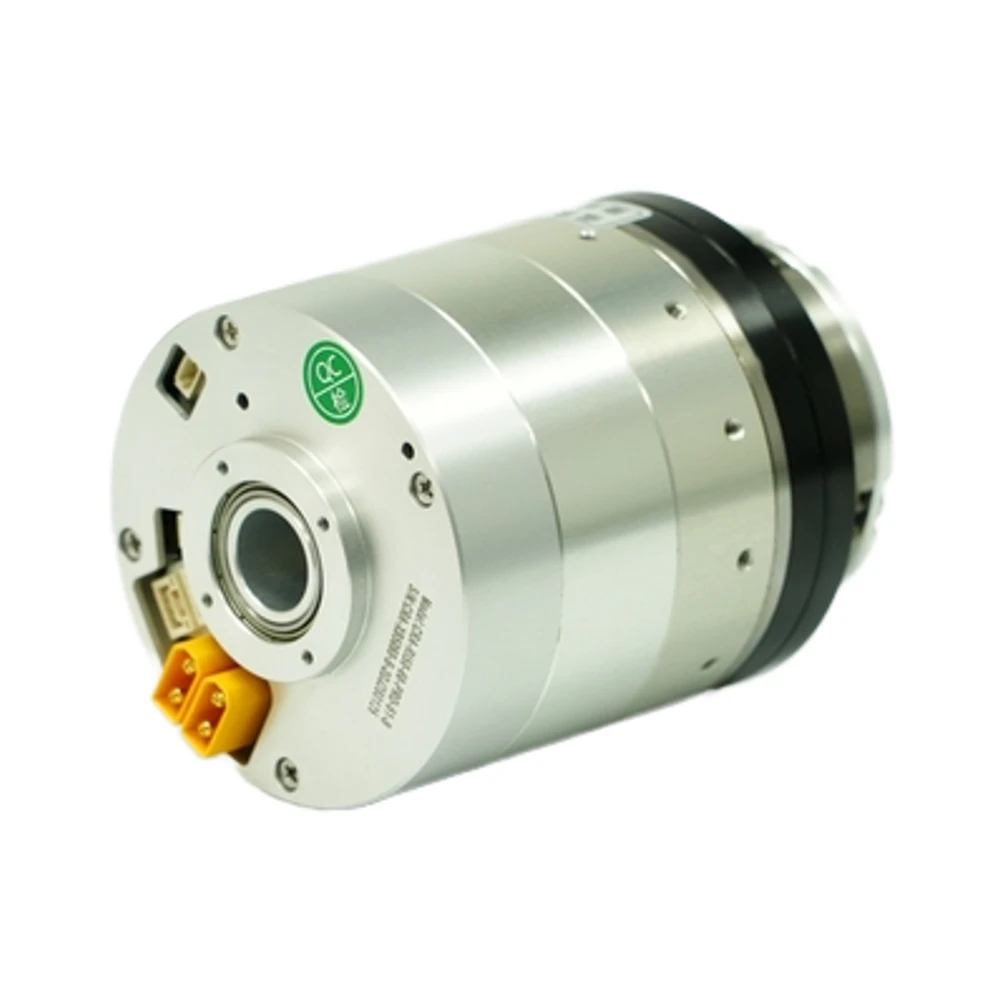

Ti5 Brushless Lightweight Permanent Magnet Servo Motor Joint Module CRA-RI40-52 Reduction Ratio 51 High Torque Low Clearance Fan
Ti5 Brushless Lightweight Permanent Magnet Servo Motor Joint Module CRA-RI40-52 Reduction Ratio 51 High Torque Low Clearance Fan
Technical Specifications
| Commutation | Brushless |
| Rated Power | 90W |
| Speed Rpm | 61RPM |
| Speed(RPM) | 61RPM |
| IP Rating | IP50 |
| Efficiency | IE 2 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | no |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Explosion-proof |
| Usage | Car, Electric Bicycle, Fan, Smart Home, Cosmetic Instrument |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 3A |
| Model Number | CRA-RI40-52-51 |
| Torque | 8.3N.m(6.12lb.ft) |
| Place of Origin | Shanghai, China |
| Brand Name | Ti5 Robot |
| Selling Units | Single item |
| Single package size | 30X30X30 cm |
| Single gross weight | 3.0 kg |
Tell us about your project and get a customized quote within one business day.
- Custom configurations available
- Global shipping & support
- 1-year warranty included
