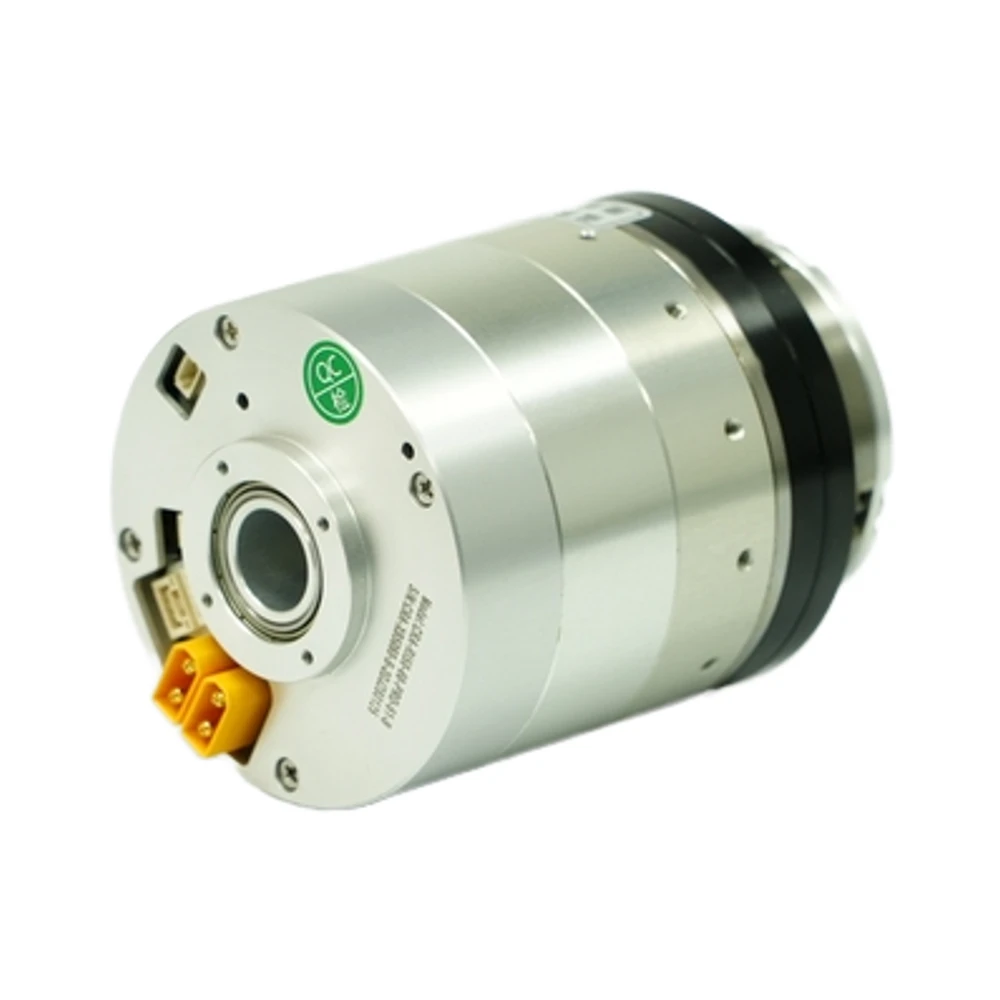

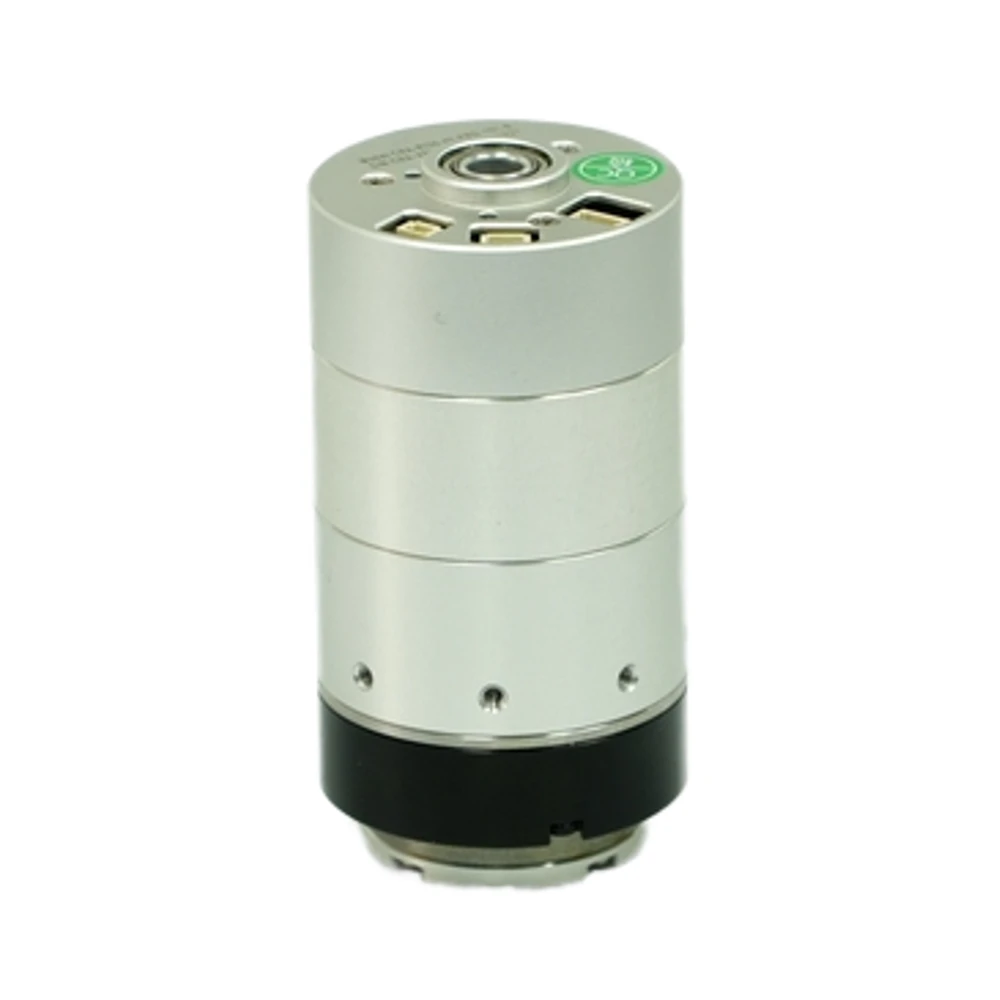

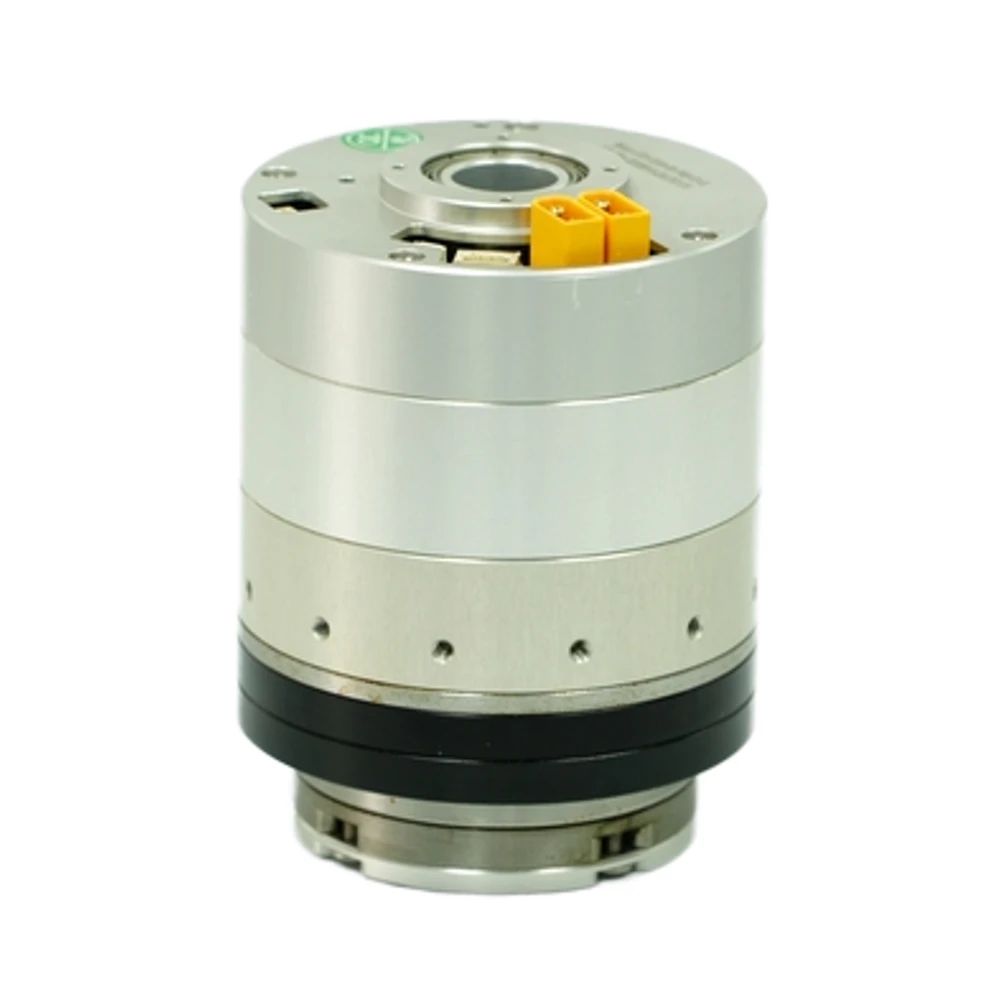

Ti5 Brushless Lightweight Permanent Magnet Servo Motor Joint Module CRA-RI30-40 Reduction Ratio 51 High Torque Low Clearance
Ti5 Brushless Lightweight Permanent Magnet Servo Motor Joint Module CRA-RI30-40 Reduction Ratio 51 High Torque Low Clearance

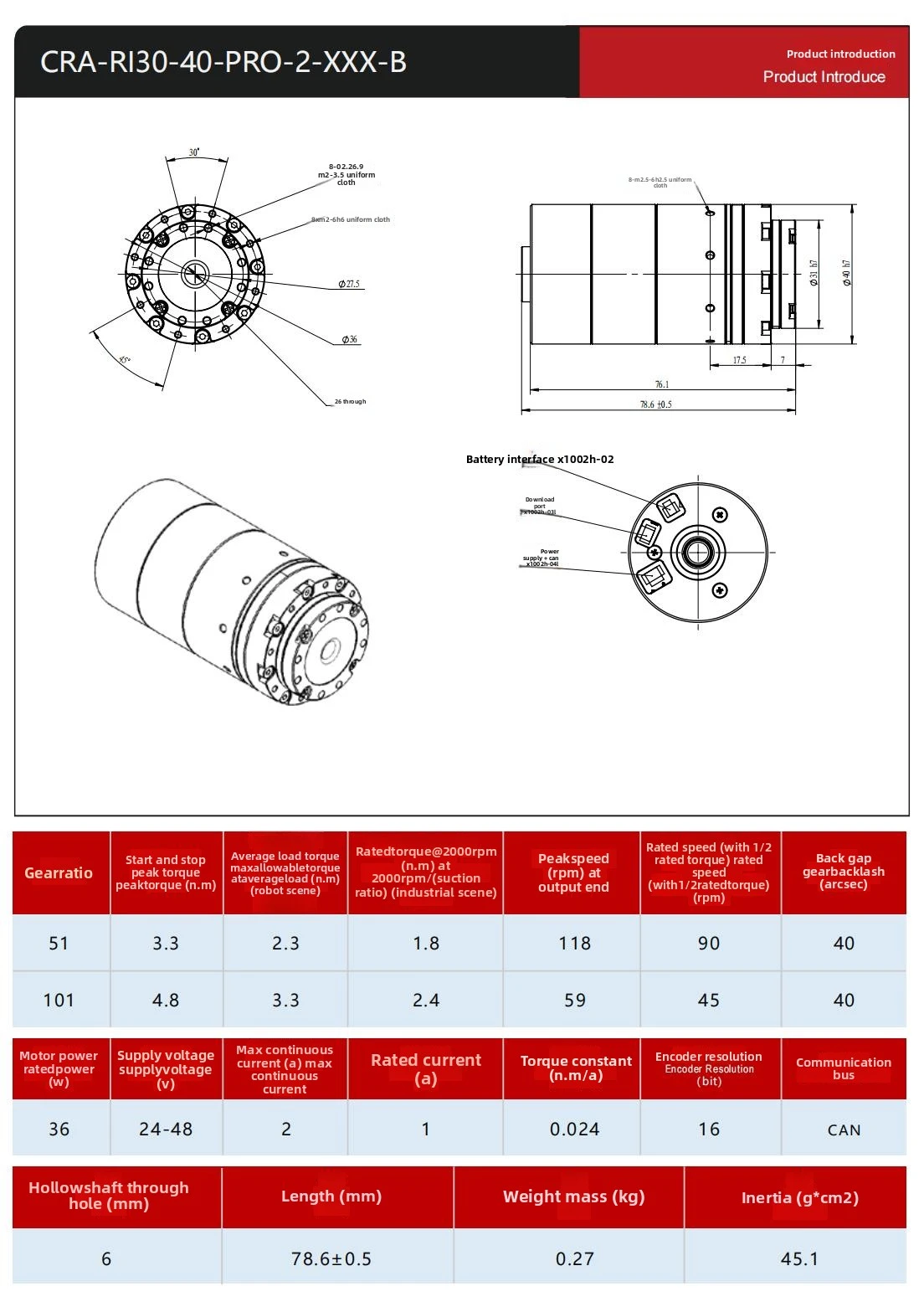

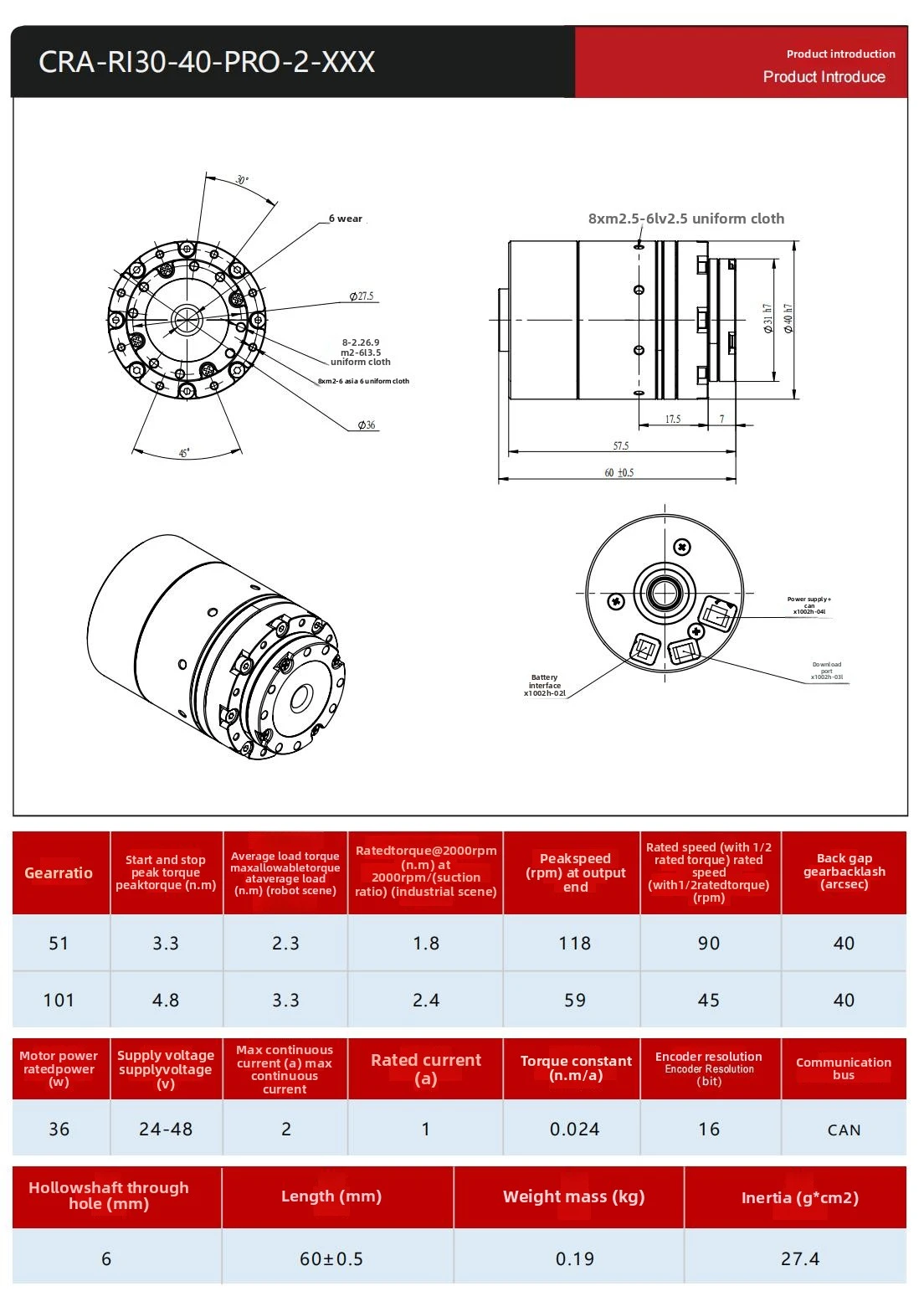

Technical Specifications
| Commutation | Brushless |
| Rated Power | 36W |
| Speed Rpm | 118RPM |
| Speed(RPM) | 118RPM |
| IP Rating | IP50 |
| Efficiency | IE 1 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | no |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Waterproof |
| Usage | ROBOT ARM |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 2A |

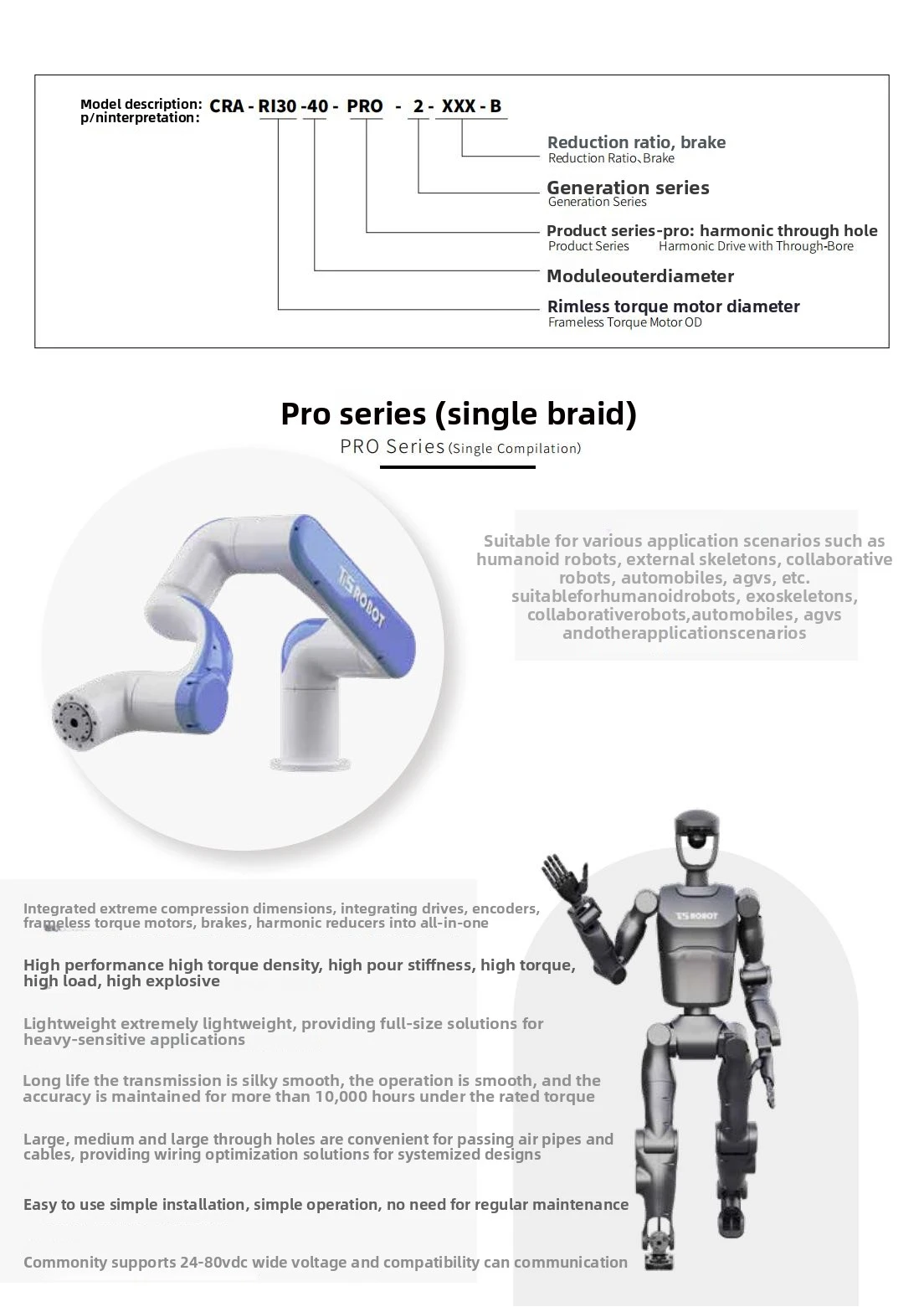

| Model Number | CRA-RI30-40-PRO-2-51 |
| Torque | 3.3Nm |
| Place of Origin | Shanghai, China |
| Brand Name | Ti5 Robot |
| Selling Units | Single item |
| Single package size | 30X30X30 cm |
| Single gross weight | 1.5 kg |
| Product name | Robotic modular servo actuator Rotary Actuators Motors |
| Start-stop peak Torque | 3.3Nm |
| OutpuT Peak Speed | 118rpm |
| Motor power | 36W |
| Supply voltage | 24-48VDC |
| Rated current | 1A |
| Backlash | 40arcsec |
| Torque constant | 0.024N.m/A |
| Inertia | 27.4g * c㎡ |
