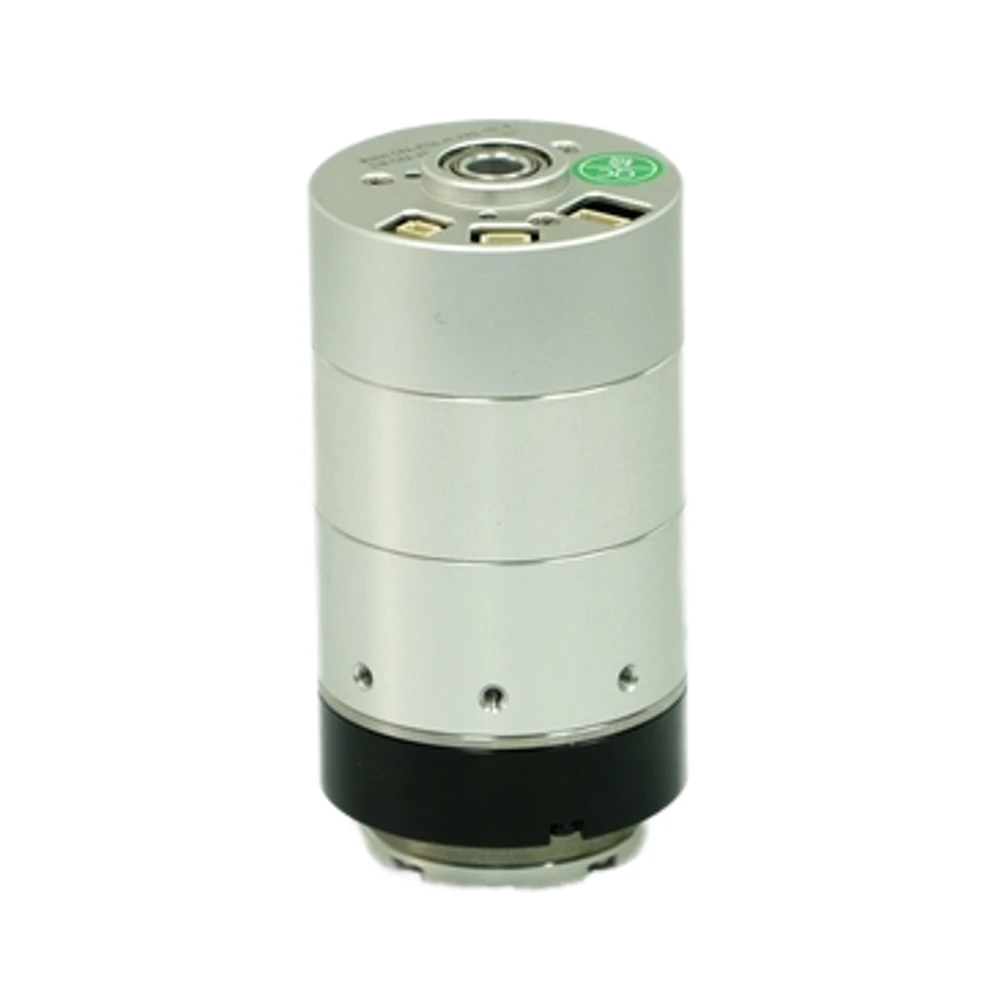

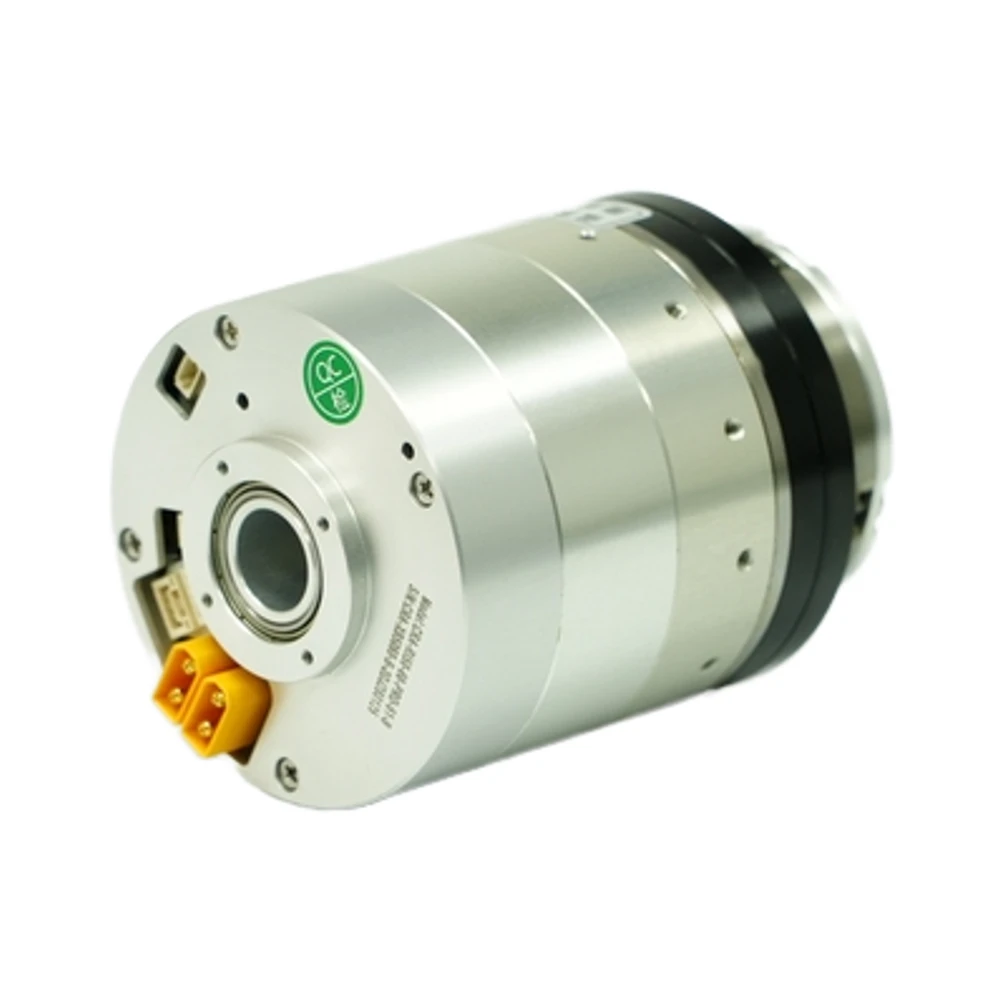

Ti5 Brushless Lightweight Permanent Magnet Servo Motor Joint Module CRA-RI30-40 Reduction Ratio 101 High Torque Low Clearance
Ti5 Brushless Lightweight Permanent Magnet Servo Motor Joint Module CRA-RI30-40 Reduction Ratio 101 High Torque Low Clearance

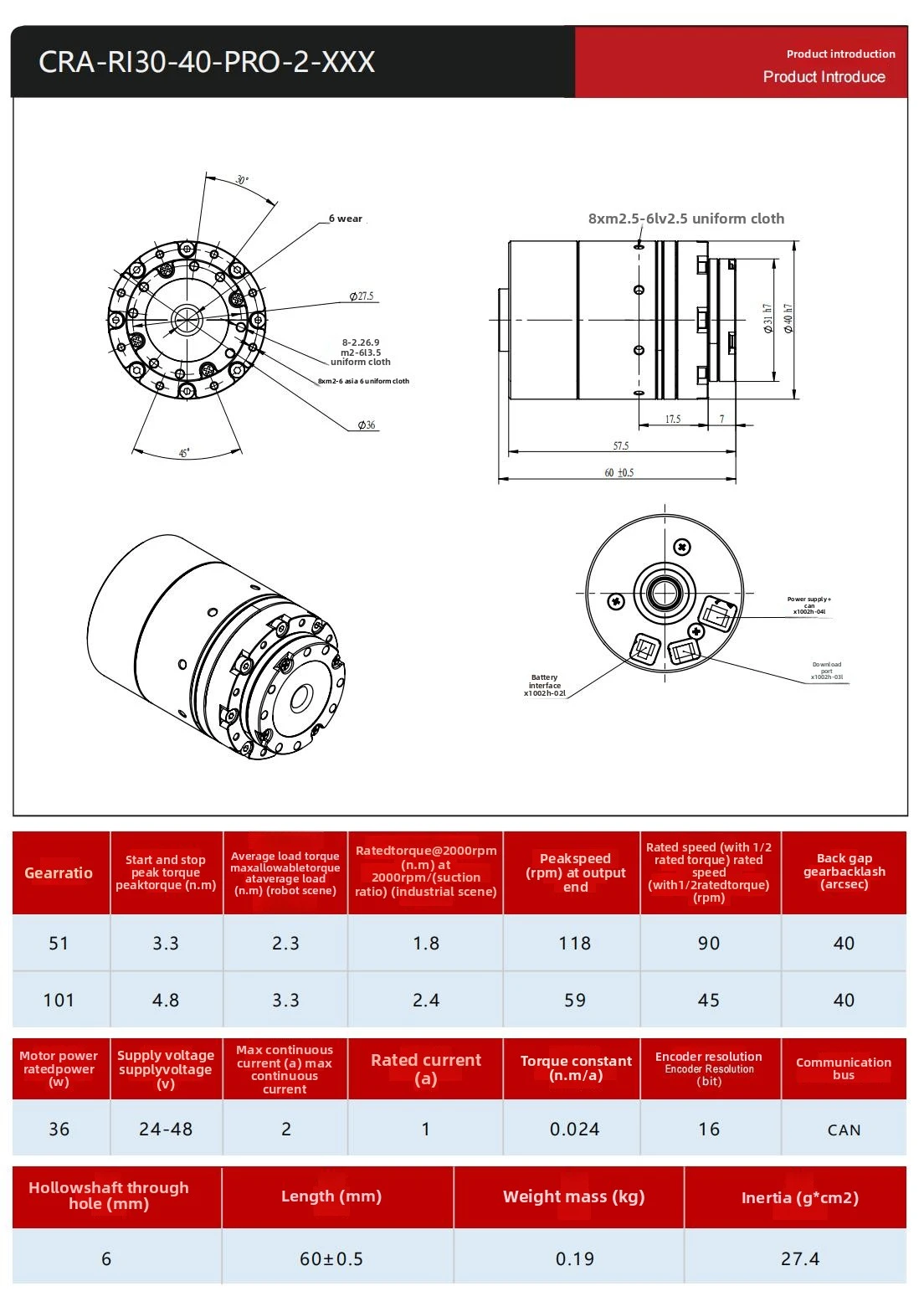

Technical Specifications
| Commutation | Brushless |
| Rated Power | 36W |
| Speed Rpm | 59RPM |
| Speed(RPM) | 59RPM |
| IP Rating | IP50 |
| Efficiency | IE 1 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | no |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Waterproof |
| Usage | Other |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 1A |
| Model Number | CRA-RI30-40-PRO-2-101 |
| Torque | 4.8Nm(0in) |
| Place of Origin | Shanghai, China |
| Brand Name | Ti5 Robot |
| Selling Units | Single item |
| Single package size | 30X30X30 cm |
| Single gross weight | 1.5 kg |
