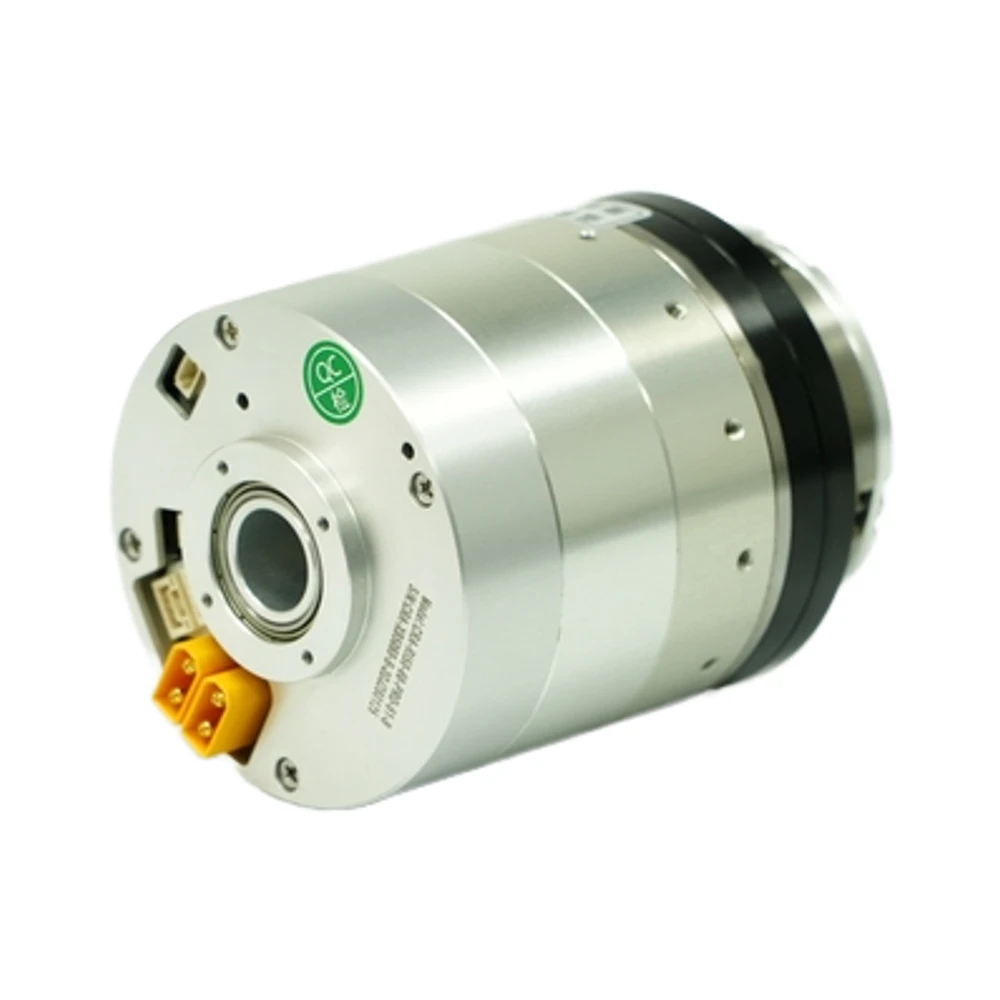

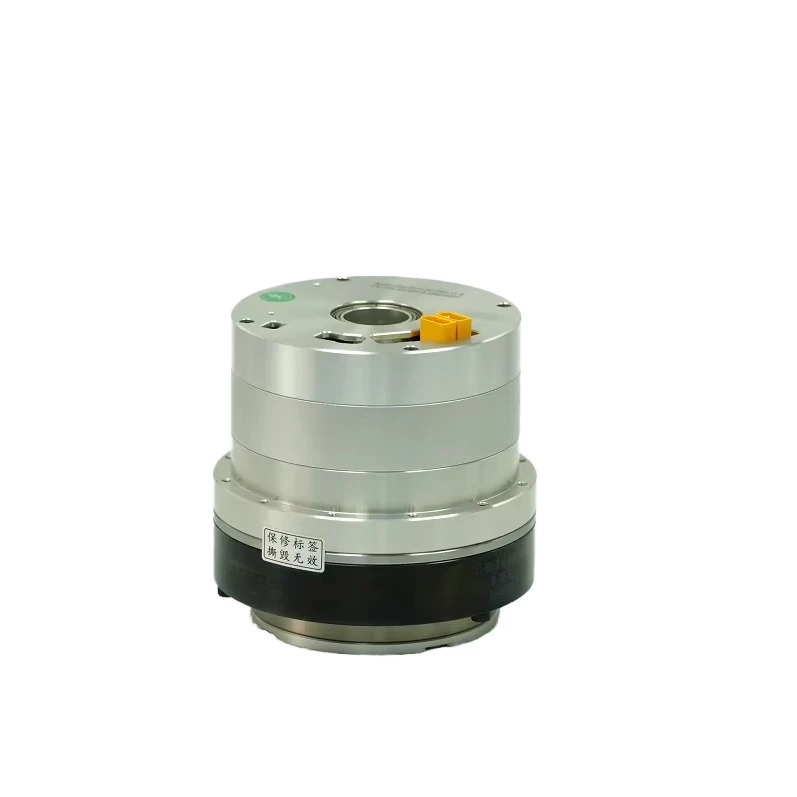

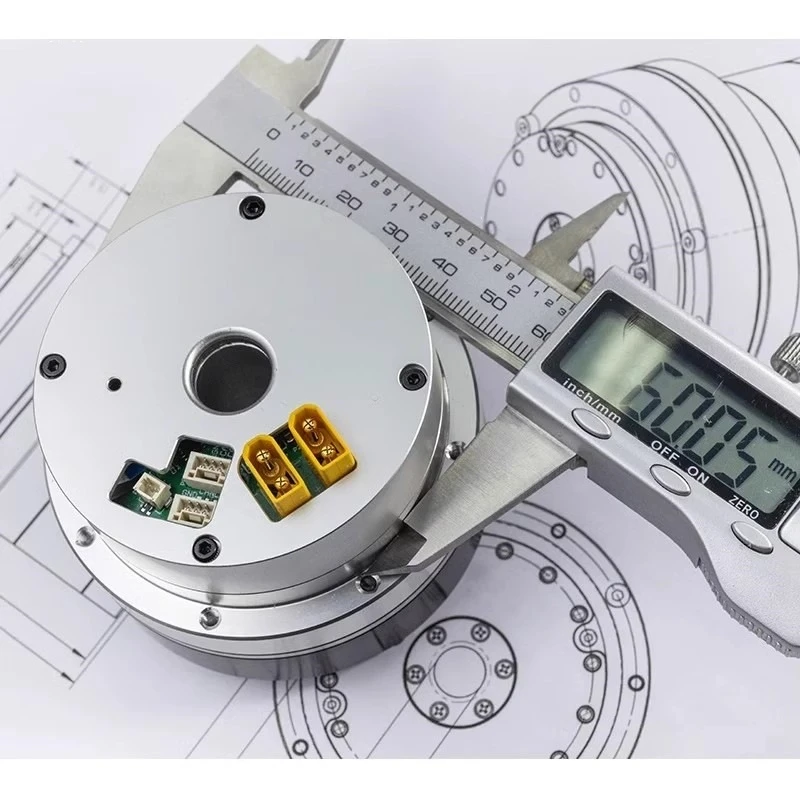

Ti Robotic Joint Module Model 40-52-2E High Torque 8.3/11 Nm 0.015 Precision IP55 Brushless DC 24V Dual-Encoder for
Ti Robotic Joint Module Model 40-52-2E High Torque 8.3/11 Nm 0.015 Precision IP55 Brushless DC 24V Dual-Encoder for

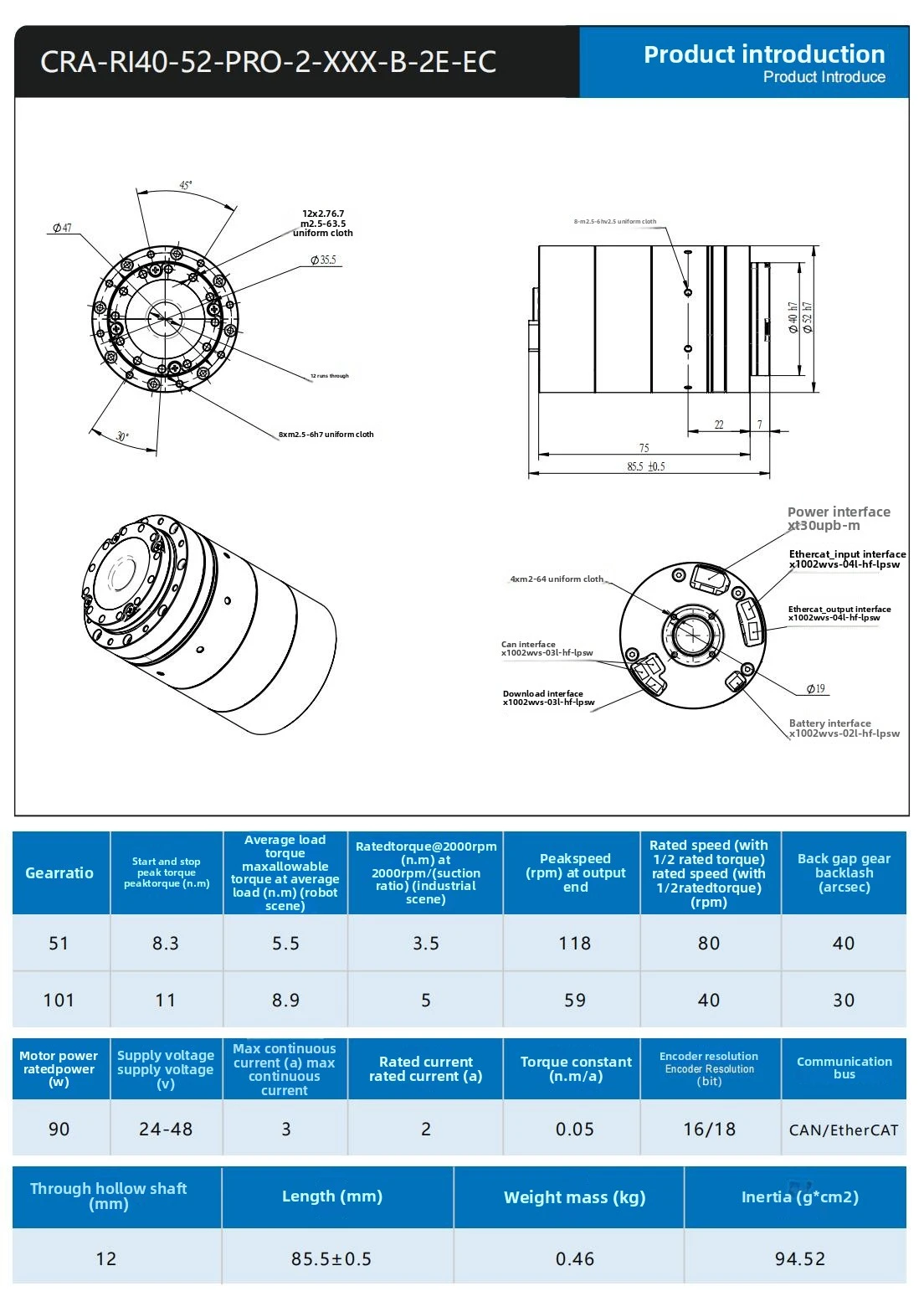

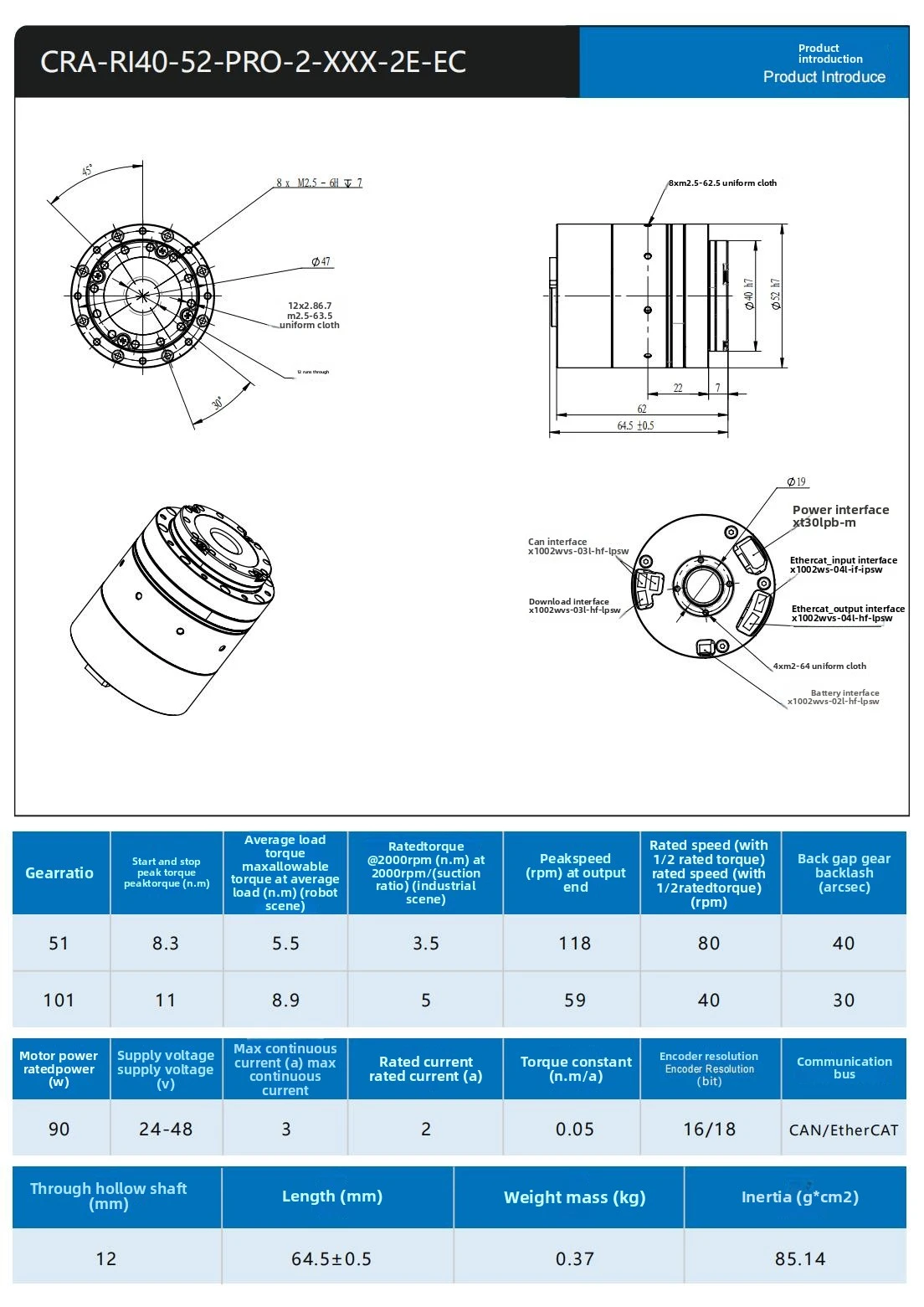

Technical Specifications
| Commutation | Brushless |
| Rated Power | 90W |
| Speed Rpm | 80/40RPM |
| Speed(RPM) | 80/40RPM |
| IP Rating | IP55 |
| Efficiency | IE 2 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | no |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Waterproof |
| Usage | Electric Bicycle, Home Appliance, Smart Home |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 2A |
| Model Number | 40-52-2E |
| Torque | 8.3/11NM |
| Place of Origin | Shanghai, China |
| Brand Name | Ti5 Robot |
| Selling Units | Single item |
| Single package size | 30X30X30 cm |
| Single gross weight | 3.0 kg |
Tell us about your project and get a customized quote within one business day.
- Custom configurations available
- Global shipping & support
- 1-year warranty included
