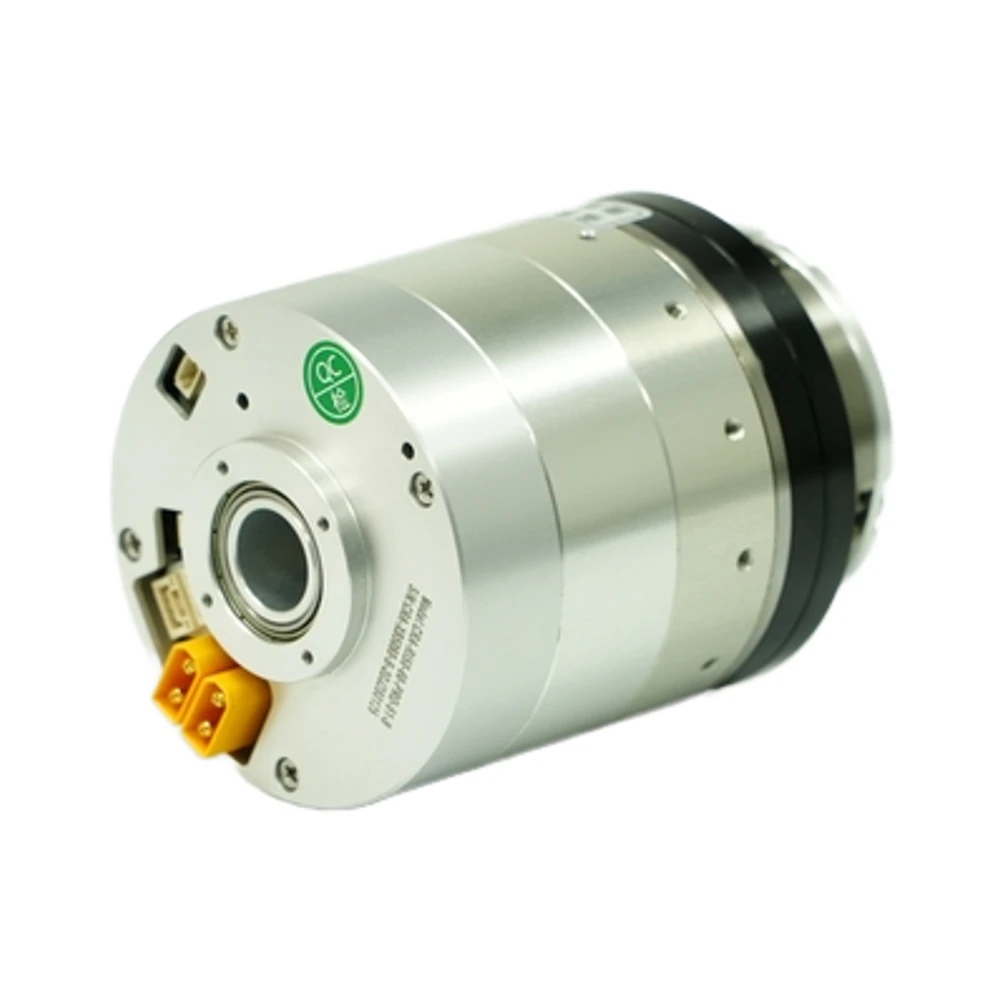

CRA-RI50-70-PRO-2E-EC Harmonic Joint Motor for Home Appliances Innovative Cross Roller Bearing Architecture EtherCAT CAN Dual
CRA-RI50-70-PRO-2E-EC Harmonic Joint Motor for Home Appliances Innovative Cross Roller Bearing Architecture EtherCAT CAN Dual

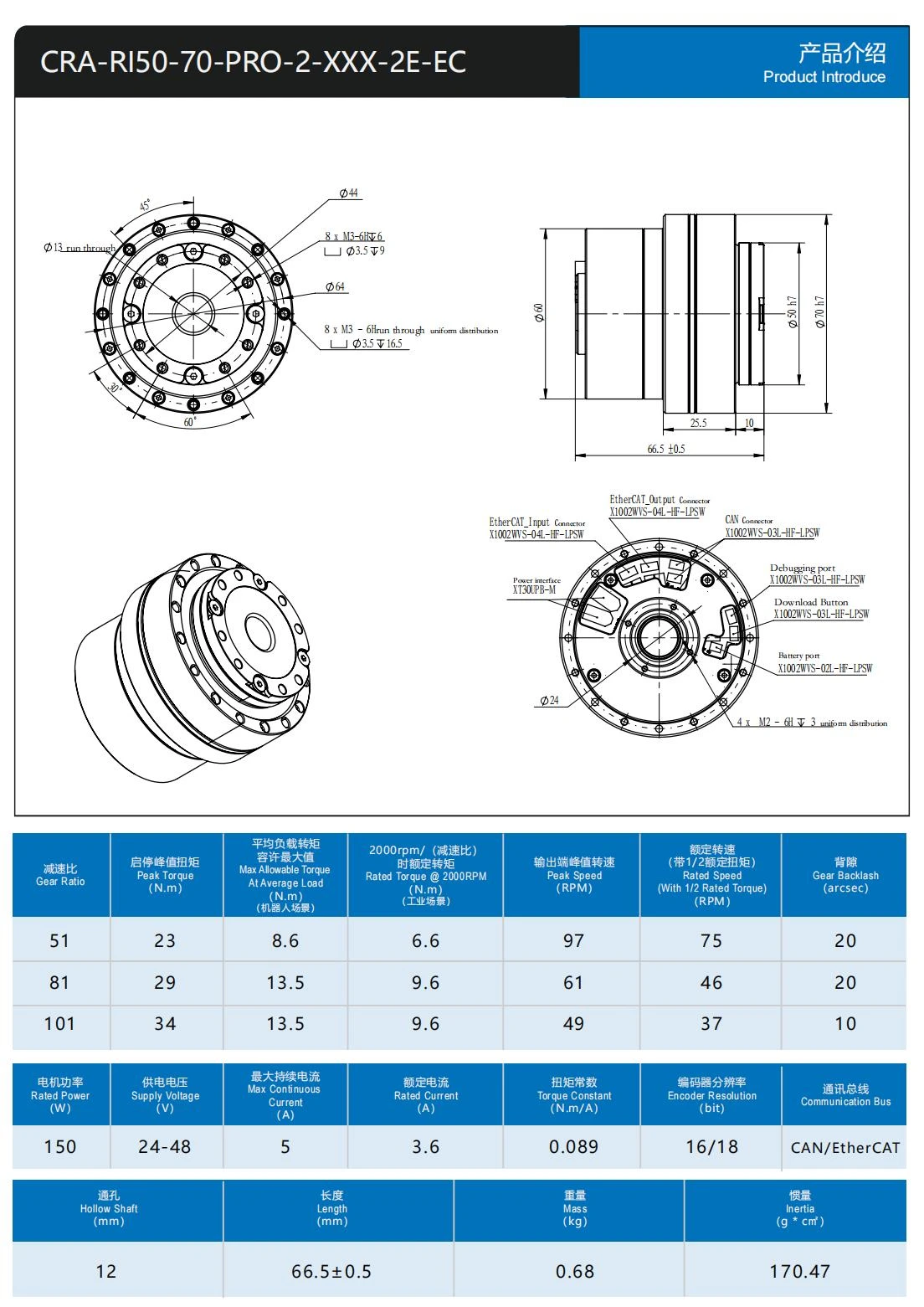

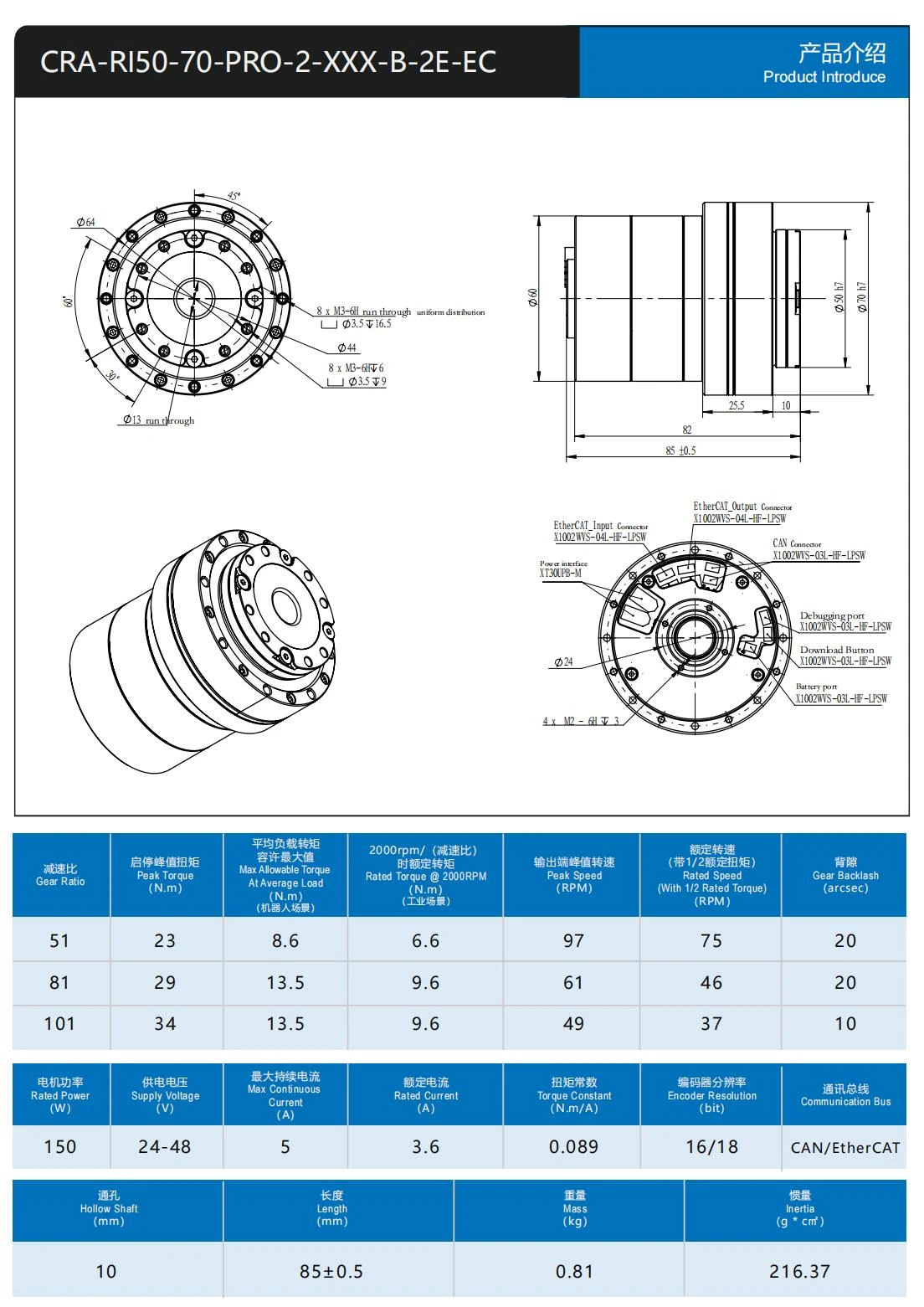

Technical Specifications
| Commutation | Brushless |
| Rated Power | 150W |
| Speed Rpm | 75/46/37PRM |
| Speed(RPM) | 75/46/37PRM |
| IP Rating | IP50 |
| Efficiency | IE 2 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | no |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Waterproof |
| Usage | Robotic arms |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 3.6A |
| Model Number | 50-70-2E-EC |
| Torque | 6.6/9.6/9.6N.M |
| Place of Origin | Shanghai, China |
| Brand Name | Ti5 Robot |
| Selling Units | Single item |
| Single package size | 30X30X30 cm |
| Single gross weight | 5kg |
Tell us about your project and get a customized quote within one business day.
- Custom configurations available
- Global shipping & support
- 1-year warranty included
